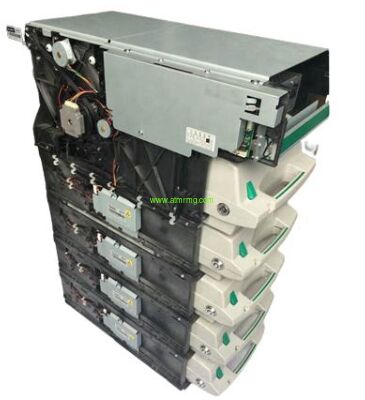

Glory NMD100 Cash Dispenser (4+1 Configuration) ATM machine Cash machine

製品の詳細:

起源の場所:	中国
ブランド名:	Glory NMD
証明:	ISO
モデル番号:	NMD100 キャッシュディスペンサー (4+1 構成)

詳細情報

起源の場所:

中国

ブランド名:

Glory NMD

証明:

ISO

モデル番号:

NMD100 キャッシュディスペンサー (4+1 構成)

取引情報

最小注文数量:

価格:

交渉可能

支払条件:

T/T、L/C、ウェスタンユニオン

供給の能力:

1ヶ月あたり1000個

製品説明

Glory NMD100 (Notes and Media Dispenser) is a high-performance, modular, friction-feed multi-denomination cash dispenser designed for ATM and self-service kiosk applicationsGlory Global. It is one of the most widely used OEM dispensing mechanisms globally, known for its low reject rate, high reliability, and flexible cassette configurationGlory Global.

1. Core Product Overview

Brand: Glory Global Solutions (formerly De La Rue NMD series)
Model: NMD100 (max 100 notes per transaction bundle)
Type: Modular tower cash dispenser / note dispensing mechanism
Key Design: Friction-feed, vertical stack, front or rear note delivery
Application: Full-function ATMs, cash recyclers, retail kiosks, high-traffic banking sites

2. Cassette Configuration (Standard with Purchase)

The NMD100 system is fully modular and expandable with cash cassettes (NC)Glory Global:

Max Cassettes: 1–8 denominations (fully configurable)Glory Global
Long Cassette (Standard): 3,000 notes per cassetteGlory Global
Short Cassette (Optional): 2,000 notes per cassetteGlory Global
Reject Cassette (Included): ~200 notes (for misfed, rejected, or unclaimed notes)
Cassette Feature: Smart Cassette Logic (SCL) — electronic locking, individual replenishment, note-level sensing
Security: Electronic cassette locks, tamper detection, secure cash handling

3. Key Performance Specifications

Dispensing Speed: 5–7 notes per second (up to 100 notes/bundle)
Max Bundle Size: 100 fit ATM notes per transactionGlory Global
Note Compatibility: Length 100–181mm, thickness 0.06–0.32mmGlory Global
Feeding System: High Performance Feed (HPF) — durable, handles worn/new notes
Double Note Detection: Intelligent Double Detection (IDD) — high accuracy on degraded notes
Delivery: Front or rear bundle delivery (field-reconfigurable)

4. Physical & Mechanical Data

Dimensions (2-denom standard): 292 (W) * 549 (D) * 530 (H) mm
Weight (2-denom with cassettes): ~22.2 kg (48.9 lbs)Glory Global
Power: 24V DC (typical ATM power)
Interface: RS-232 / RS-485 communication
Certifications: CE, UL, RoHS compliantGlory Global

5. Key Advantages

Lowest reject rate in its class — maximizes ATM uptimeGlory Global
Modular design — easy maintenance, field-upgradable
8-cassette capacity — supports multi-denomination and multi-currency setupsGlory Global
Secure bundle control — notes held until customer pickup
Wide note compatibility — handles new, worn, and mixed-condition currency

6. Typical Use Case

Ideal for:
