| 起源の場所: | 中国 |
| ブランド名: | Reiner |
| 証明: | ISO |
| モデル番号: | Reiner スキャナ RS 893 - バンドル フィード スキャナ |
| 文書: | Product+datasheet+RS+893+en...en.pdf |

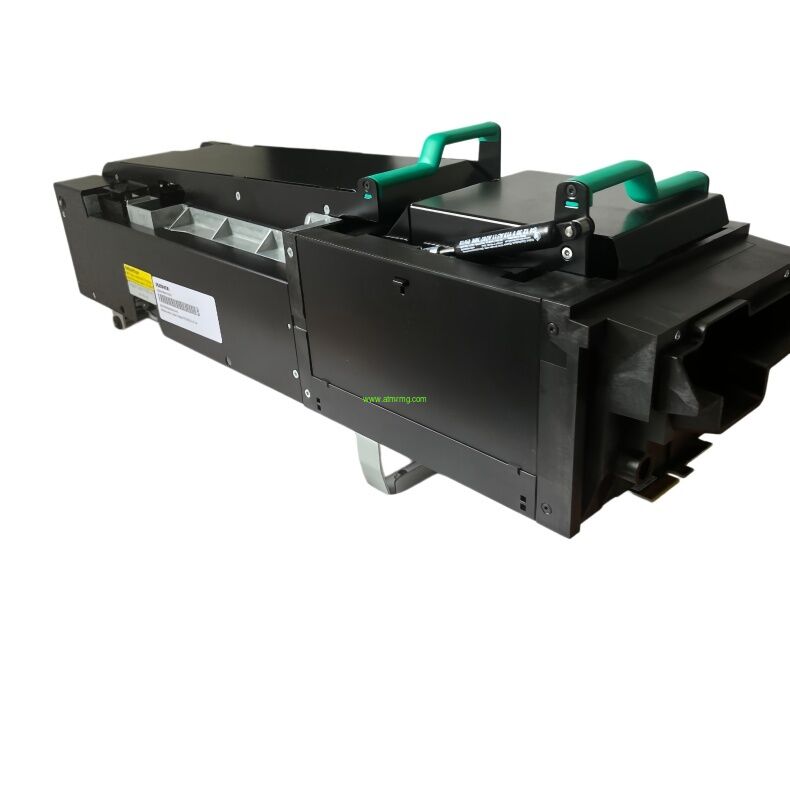

The open-frame scan module RS 893 processes bundles of up to 50 cheques and integrates easily into Self-Service Kiosks and
ATMs. The scan module RS 893 brings reliable and efficient document input to the self-service area. The device reacts when paper
is inserted and starts processing automatically.
The REINER® RS 893 scanner has cameras for both sides producing colour, greyscale and black/white images. And the front side camera
can be upgraded to add UV and IR-image channels. For cheques with magnetic code-lines (E13B and CMC7), the MICR head reads the data
and delivers this to the application alongside the image(s). A rear side endorser is standard and a front side roller stamp option is available.
The complete document path is accessible without the need for tools. The cheque scanner unit features the same specifications as the
REINER® RS 891 (see corresponding specification sheet).
The RS 893 can be combined with the RA 894 (Stacker unit) to store up to 2.000 cheques in chronological order and with the RR 895 (Reject
module) to return to the customer any cheques not accepted by the application.
| Dimensions (W x D x H) | 165 mm x 560 mm x 140 mm |
|---|---|
| Weight | 8.6 kg |
| Colour | Black |
| Power | 24 V DC; < 3 A (Optional power supply: 100 … 240 VAC) |
| Noise | Approx. 62 dBA |
| Approvals | Conforms to: EMC-Guideline 2014/30/EU Low-voltage guideline 2014/35/EU Type-approved according to: EN60950-1:2006+A11:2009+A1:2010 +A12:2011 +A2:2013 cCSAUSA according to: CSA 60950-1-07, 2nd Edition UL 60950-1, 2nd Edition FCC Part 15 |
| Options | Front side colour CIS camera with additional ultra-violet and/or infrared channels Stacker unit RA 894-015 or 300 for up to 1.000 or 2.000 documents Reject module RR 895-000 or -030 External power supply Other models available! |
